Mobile Bio-Reactor Systems (MBR)

Numerous process improvements have transformed membrane bioreactors into a new and innovative technology with potential for future development. Bioreactors not only improve the shortcomings of conventional activated sludge process; but also perform well despite high concentrations of contaminate sludge. The system offers many advantages including stable, high quality outflow, a smaller footprint, reduced sludge, and tolerance of changing containment loads.

Features

High Efficiency

High concentration of mixed liquor suspended solids (MLSS), small reactor, long sludge retention time, short hydraulic retention time, more effective sludge separation, high loading capacity, and low F/M that overcomes the disadvantages associated with nitrification of activated sludge.

Modular

Compact design, easy assembly and disassembly, and highly transportable. Mobile module MBR features a modular design that satisfies all kinds of wastewater treatment needs across different wastewater sources. Parallel installation can increase production.

Simple

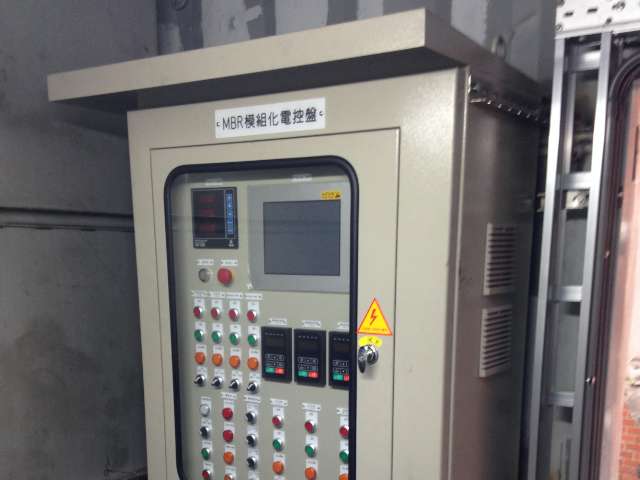

Easy to operate, fully automatic control (PLC), remote controllable

ZISECO® Conventional Activated Sludge System and Membrane Bioreactor

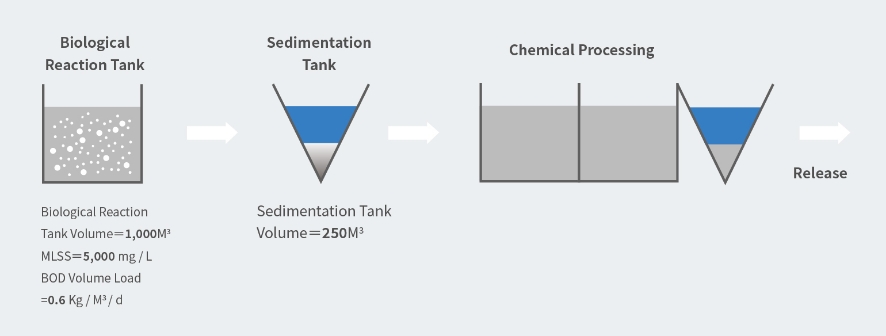

Conventional Activated Sludge System

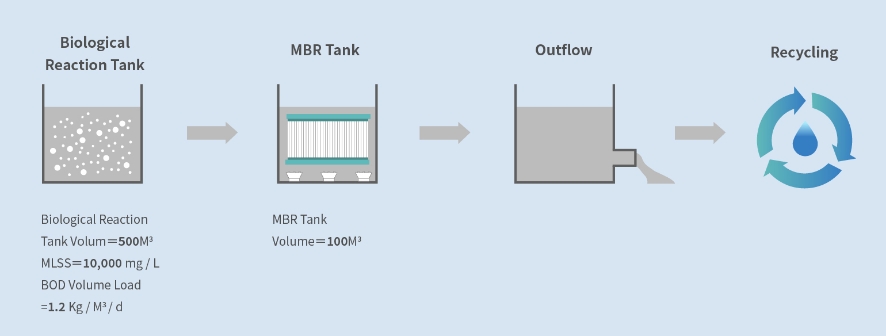

Membrane Bioreactor

Membrane Bioreactor

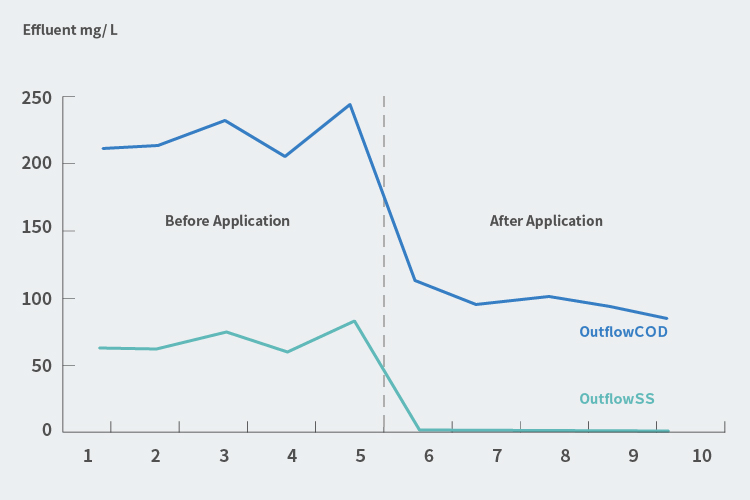

ZISECO® MBR Effluent Contrast

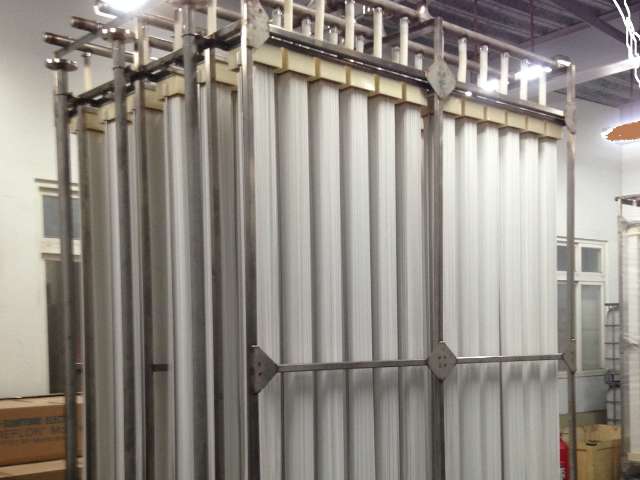

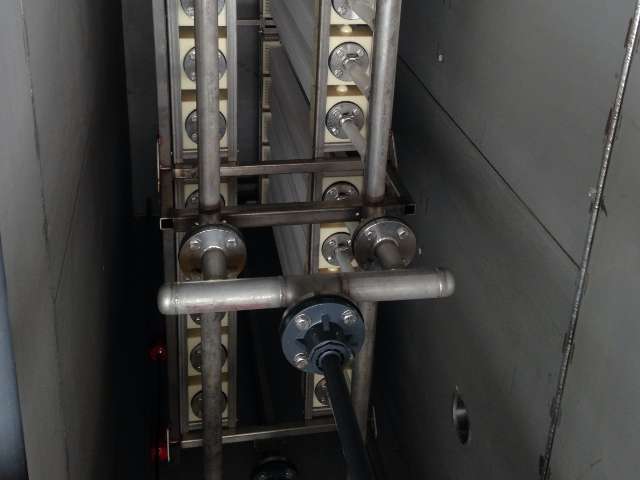

ZISECO® Product Overview

Product Specifications

Type S-6-50 S-6-100 L-12-200 L-12-400 Custom Specification
Capacity (m3/h) 2 4 8 16 Made to Order
Surface Area (m2) 120 240 480 960
Area (m2) 15 15 30 30
Weight (T) 5 6.5 7.5 10
Quality SS < 5mg / L ; NTU < 0.5

Product Specifications

Type: S-6-50

Capacity (m3/h): 2

Surface Area (m2): 120

Area (m2): 15

5

SS < 5mg / L ; NTU < 0.5

Made to Order

Type: S-6-100

Capacity (m3/h): 4

Surface Area (m2): 240

Area (m2): 15

6.5

SS < 5mg / L ; NTU < 0.5

Made to Order

Type: L-12-200

Capacity (m3/h): 8

Surface Area (m2): 480

Area (m2): 30

7.5

SS < 5mg / L ; NTU < 0.5

Made to Order

Type: L-12-400

Capacity (m3/h): 16

Surface Area (m2): 960

Area (m2): 30

10

SS < 5mg / L ; NTU < 0.5

Made to Order

Application Fields

Residential Areas
Hotels
Schools
Construction Sites
Remote Areas
Scenic Areas
Tourist Attractions
Factories
External Factories
Custom Applications
